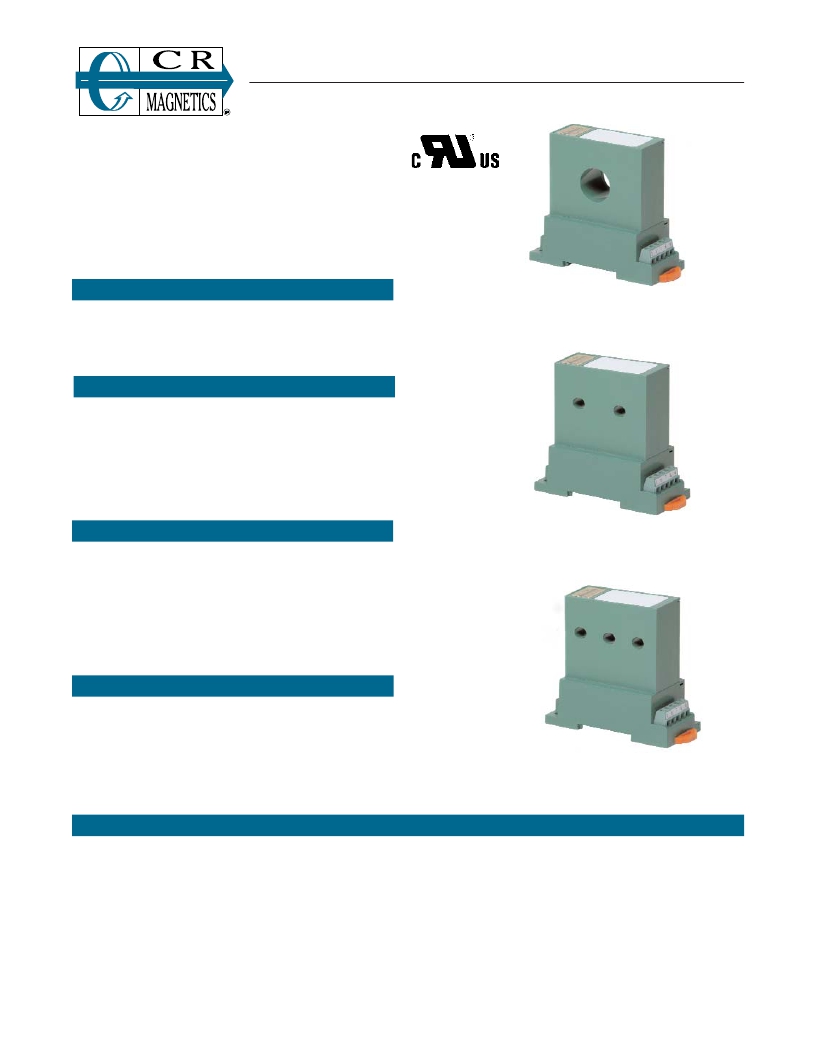

True RMS AC Current Transducer
DIN RAIL / PANEL MOUNT, TRUE RMS
The CR4100 Series true RMS Current
Transducers and Transmitters are designed for
applications where AC current waveforms are
not purely sinusoidal. More precise and accurate
than other transducers, these devices are ideal
in chopped wave and phase fired control sys-
tems.
E199795
Regulatory Agencies
CR4110
CR4120
? Approved to UL3111-1, First Editon, Ammendment 2
? Approved to CAN/CSA-C22.2, No. 1010.1-92
? Meets requirement of IEC 61010-1 and BS EN 61010-1
Applications
One Element - .79” Window
0.5 to 150 Aac Range
?
?
?
?
Phase fired controlled heaters
Quickly varying motor loads
Chopped wave form drivers
Harmonic currents
Features
CR4150
CR4160
?
?
?
?
?
?
35mm DIN Rail or Panel Mount
Available with 0 - 5 Vdc or 4 - 20 mA DC outputs
24 Vdc powered
Use with external current transformers
Highest precision available
Connection diagram printed on case
Two Element - .26” Window
0.5 to 30 Aac Range
Internet Resources http://www.crmagnetics.com/
? Pricing: pricing/4100.html
? Application Sheets: pdf/ancr4310.pdf,
pdf/ancr4310-2.pdf, pdf/ancr4320.pdf
CR4170
CR4180
See page 34 for typical applications
Part Numbers
Three Element .26” window
0.5 to 30 Aac Range
CR4110
CR4120
CR4150
CR4160
CR4170
CR4180
-
-
-
-
-
-
?
?
?
?
?
?
Single element with 0 - 5 Vdc output
Single element with 4 - 20 mA DC output
Two element with 0 - 5 Vdc output *
Two element with 4 to 20 mA DC output *
Three element with 0 - 5 Vdc output *
Three element with 4 - 20 mA DC output *
.5
5
10
15
20
25
-
-
-
-
-
-
? Add suffix for input range
0-.5 Aac * 40 - 0-40 Aac
0- 5 Aac * 50 - 0-50 Aac
0-10 Aac * 75 - 0-75 Aac
0-15 Aac * 100 - 0-100 Aac
0-20 Aac * 150 - 0-150 Aac
0-25 Aac *
*
Two and three element transducers are
available only in ranges of 0.5 to 30 Aac
30
-
0-30 Aac *
Other Ranges Available
